Smelter Ladle Lifting Hook

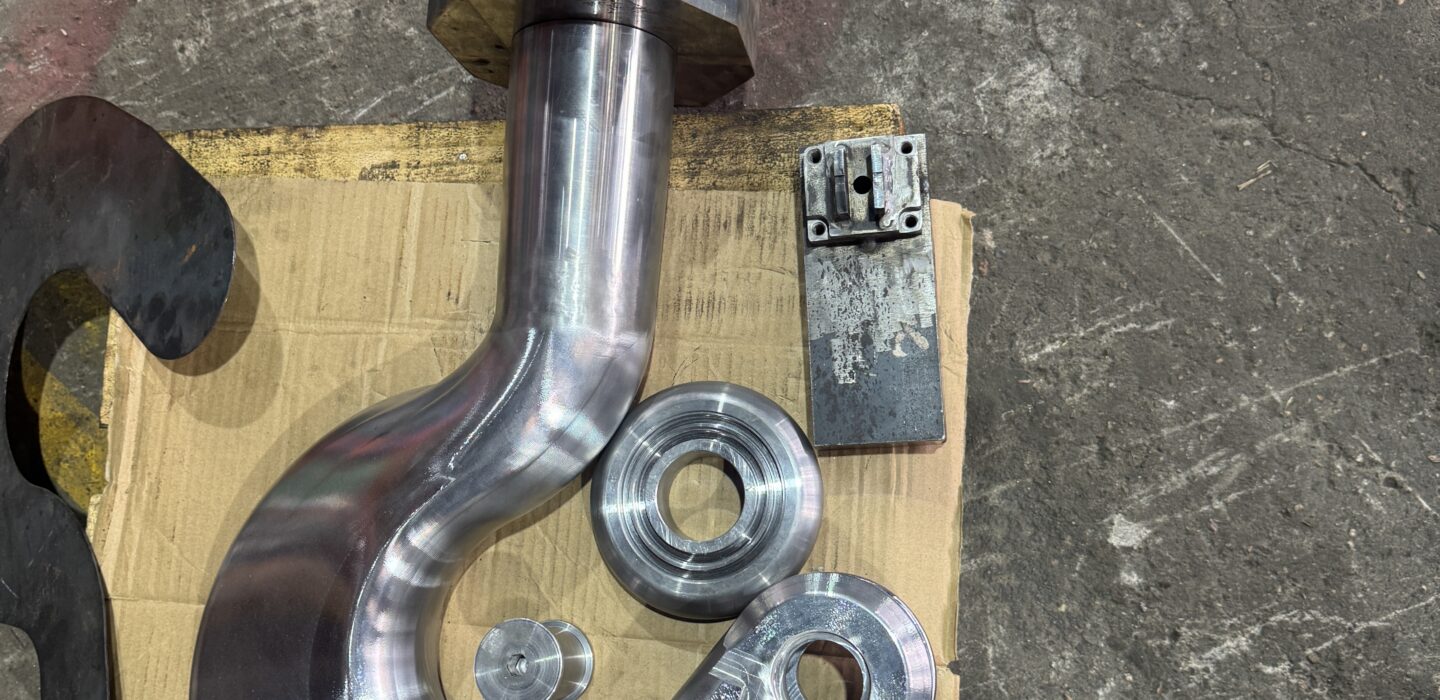

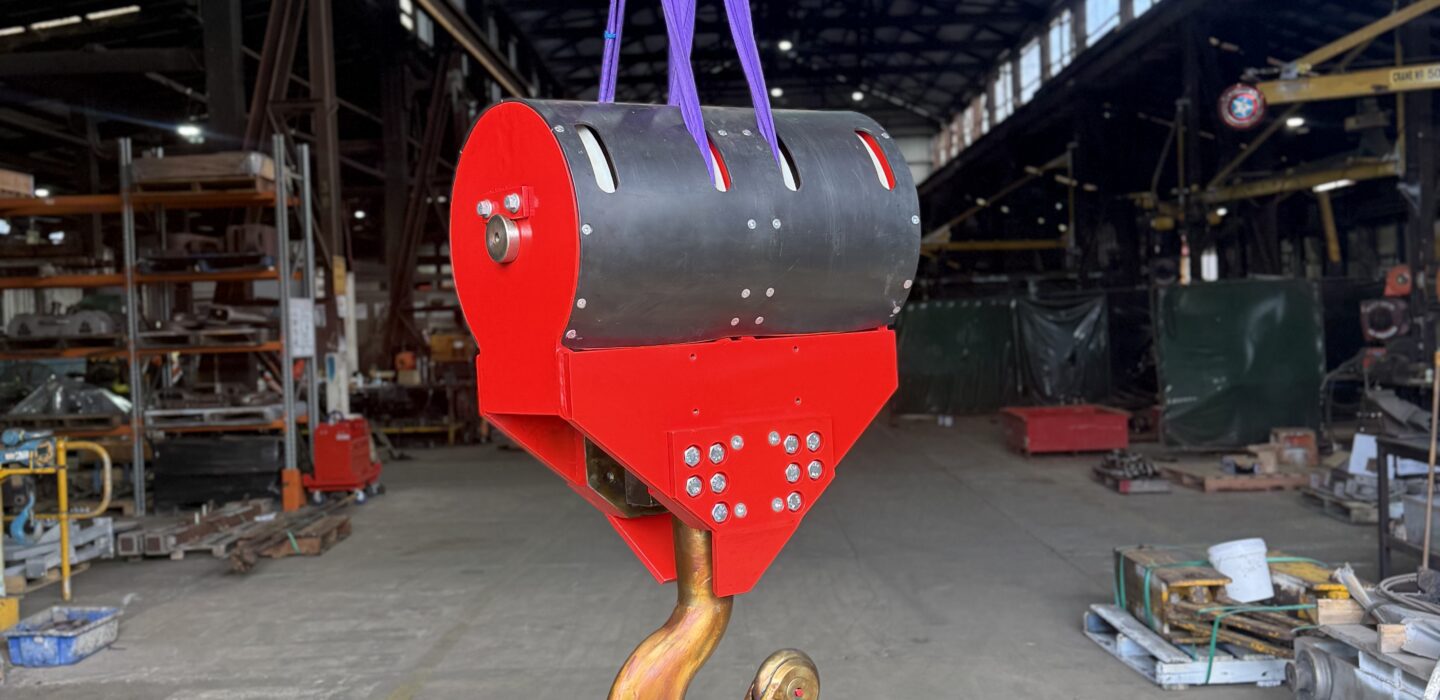

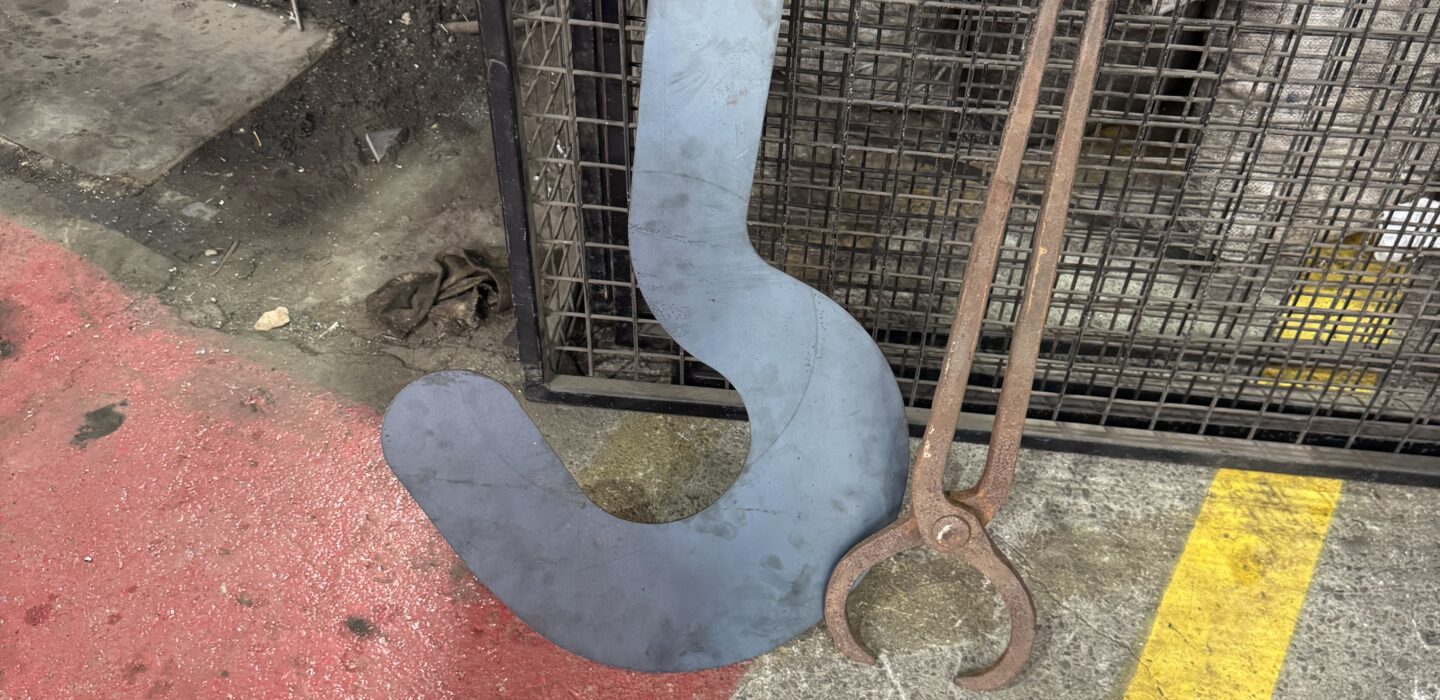

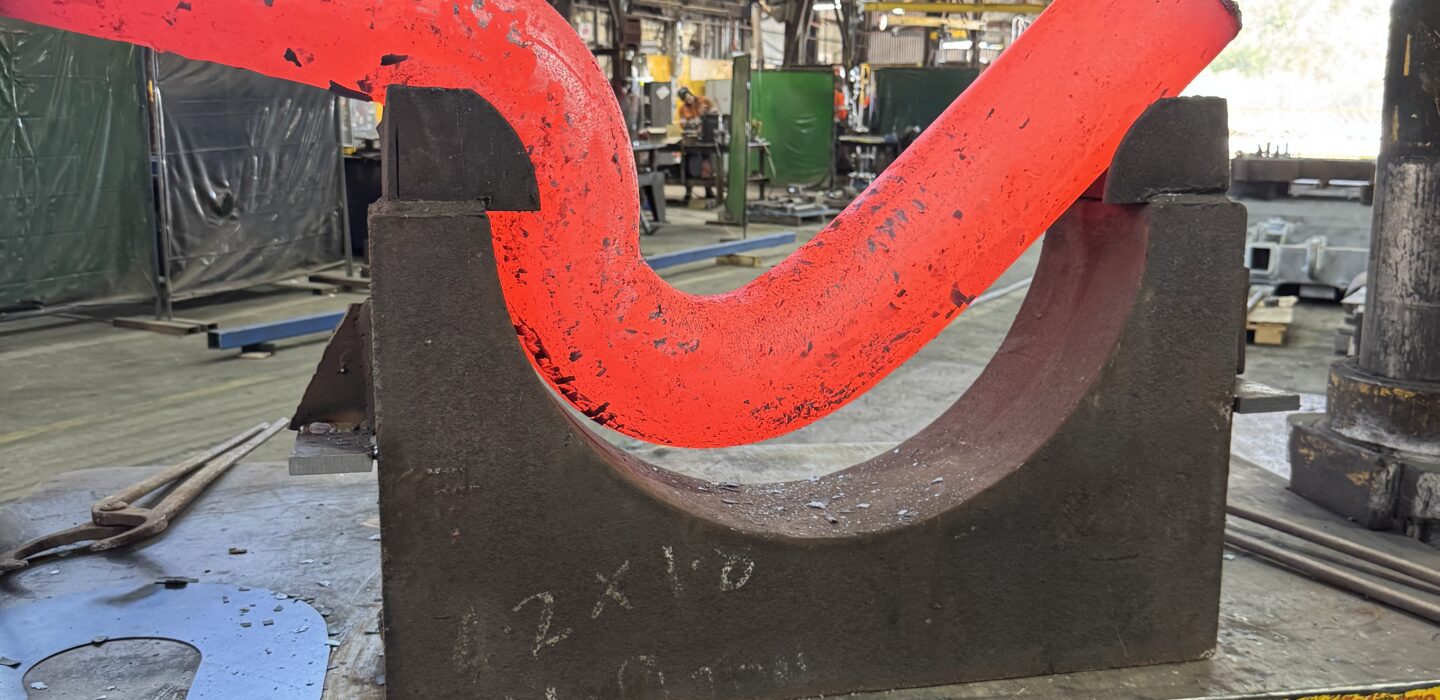

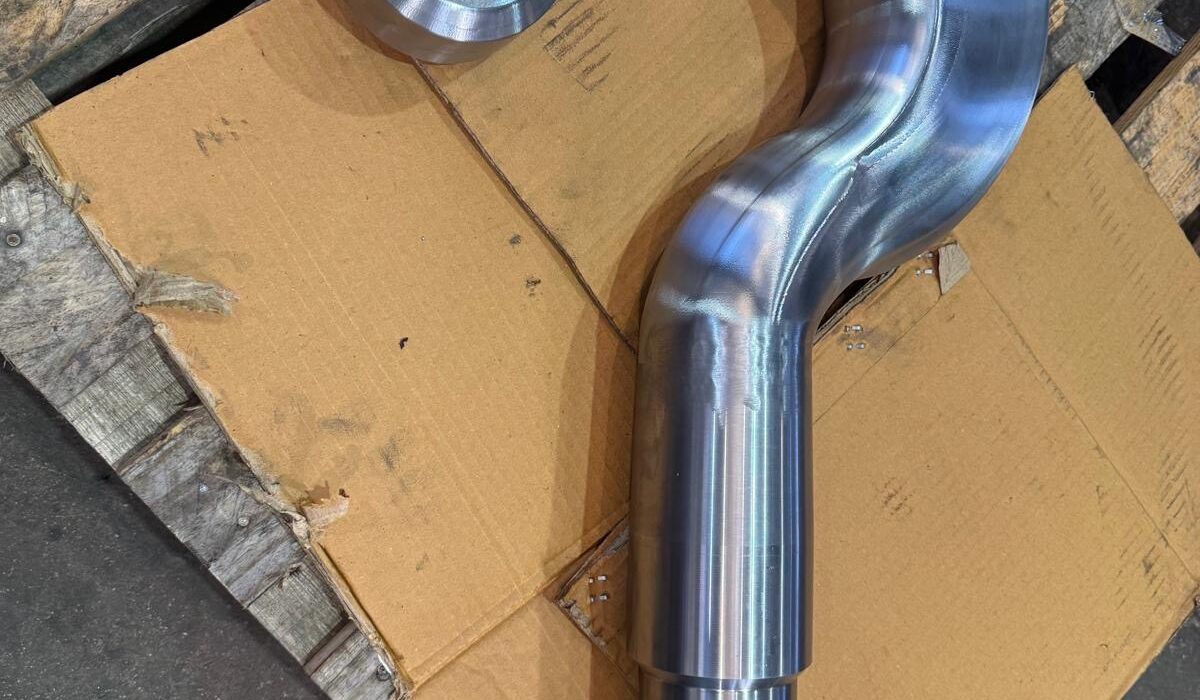

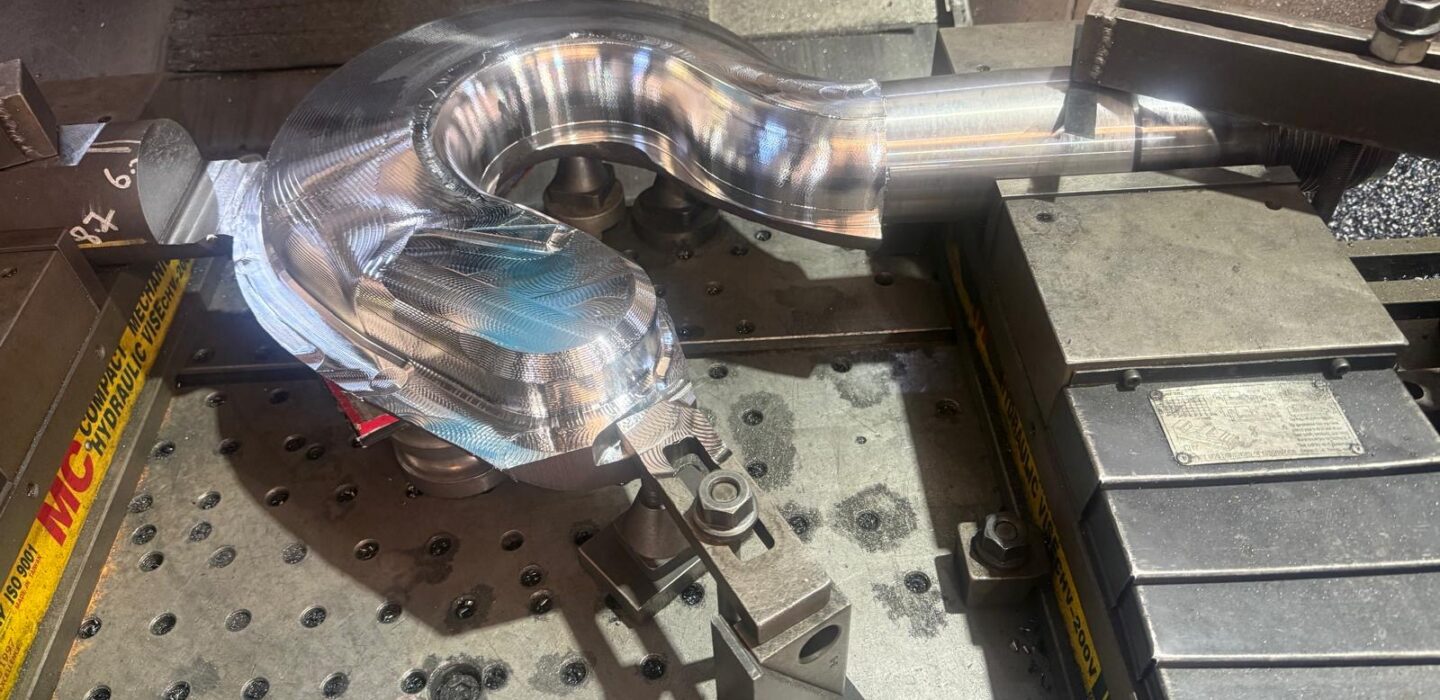

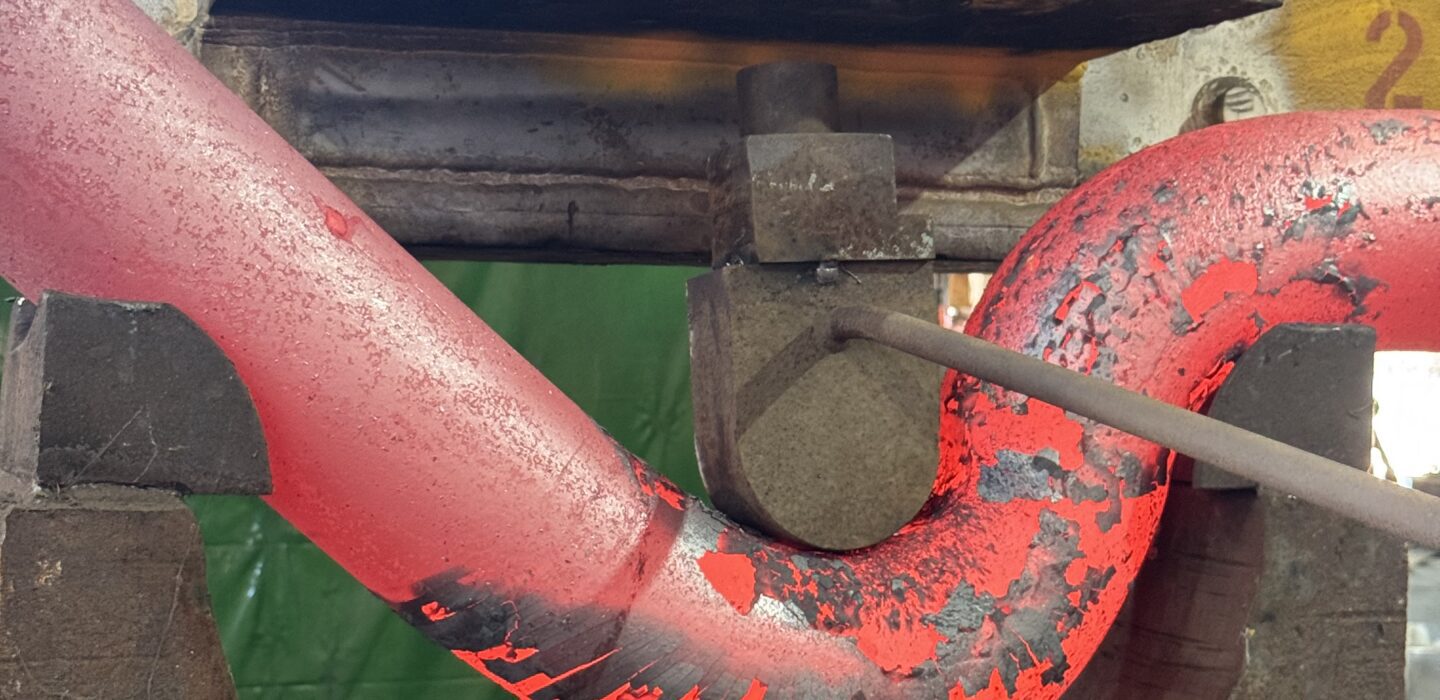

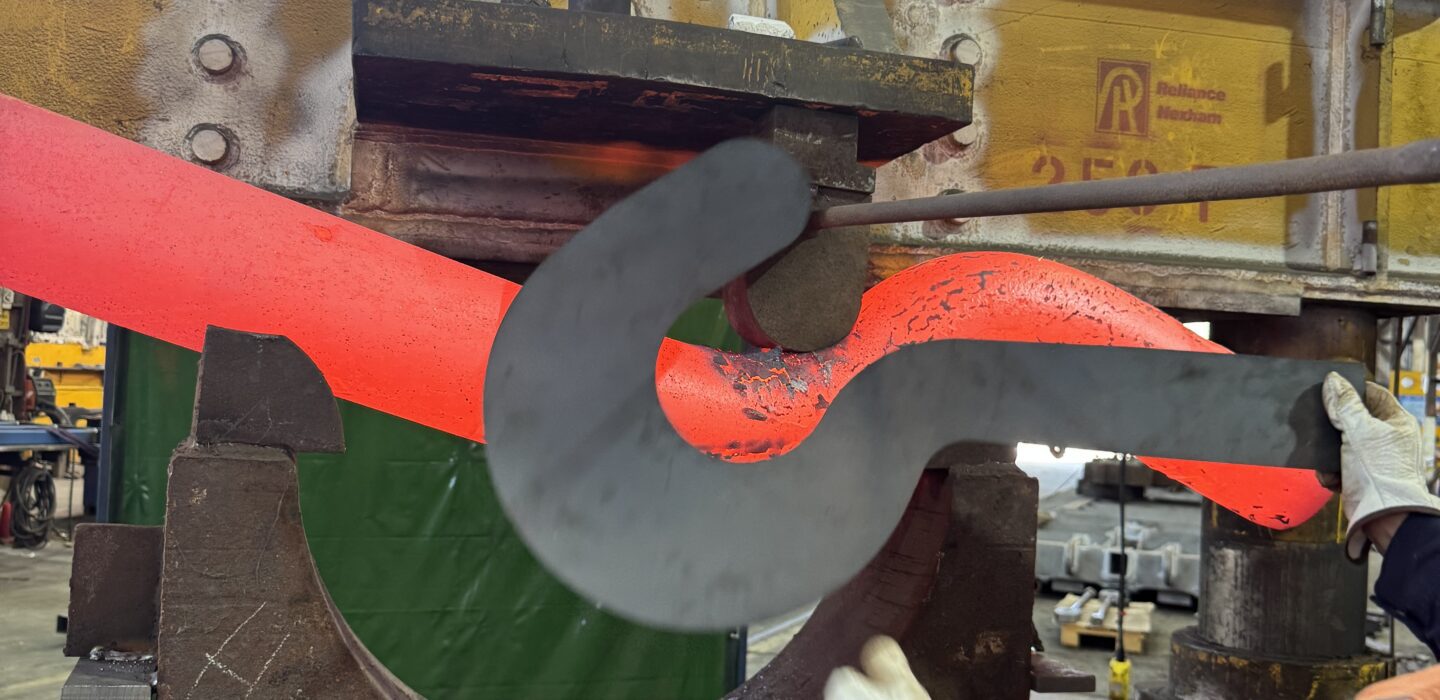

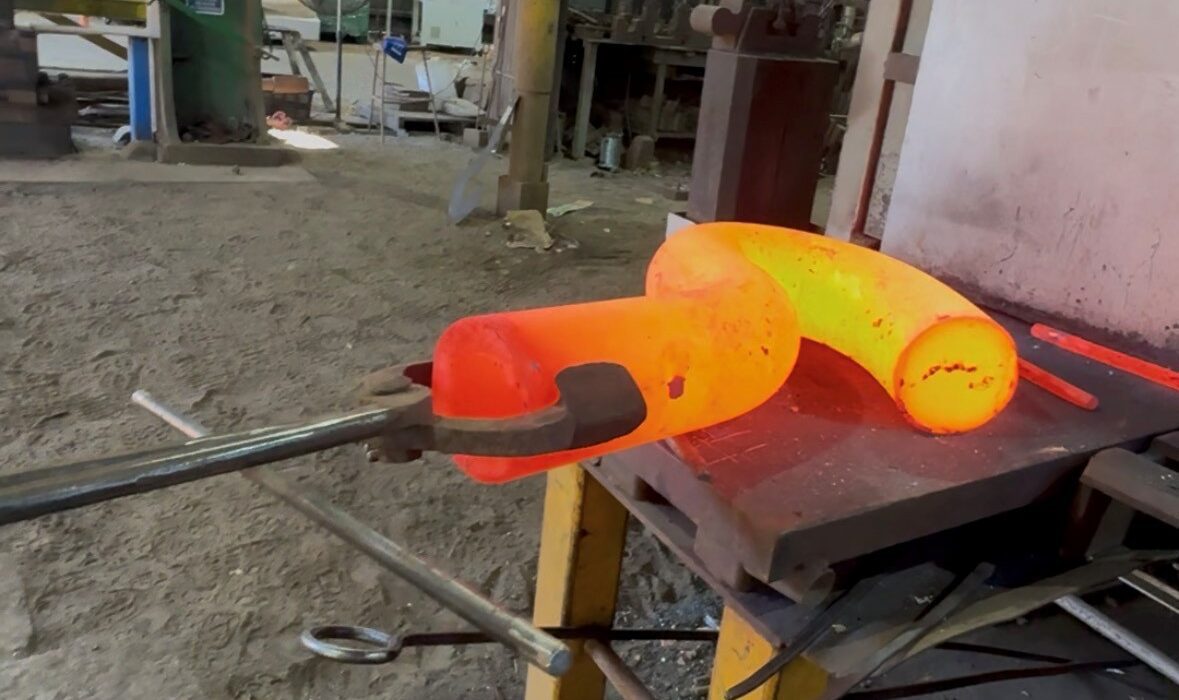

This specially designed Hook with its unique roller at the point of the Hook eliminates the possibility of a point load. When the gantry crane driver manouvers the hook to connect to the ladle the connection is either 100% positive or does not connect at all. Ensuring a very safe lift. We manufactured this high alloy hook from a round billet by press forging to the general hook shape and then forging under the power hammer to complete the process. Our CNC lathes and mills did the rest to produce a high quality final product. With NATA accredited Proof Load Testing in our 200T Tensile Test Bed, followed by NATA approved Non Destructive AS1171 our customer receives a complete certification package.
